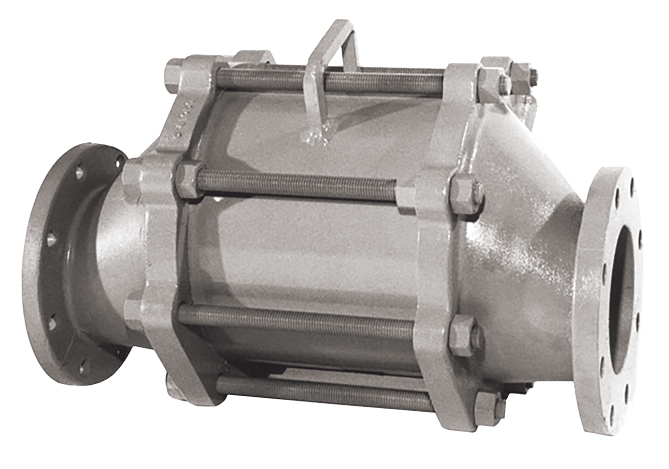

Flame Arrester – Horizontal Installation
Model: 7628
Description
The Groth 7628 model is designed to inhibit flame propagation in gas piping systems and to protect low pressure tanks containing flammable liquids. Arresters protect low flash point liquids from external sources of ignition which provides increased fire protection and safety.
Features
Horizontal installation
Flame arrester element geometry maximizes flame quenching capability while minimizing pressure drop
Spiral-wound, crimped ribbon flame element
Modular design allows easy and cost-effective flame bank maintenance
Compact design keeps weight and installation cost down
Eccentric design minimizes liquid accumulation
Specifications
Sizes: 2″ (DN50) through 12″ (DN300)
Material: Aluminum, Carbon Steel, Stainless Steel
Flame Element Material: 316L Stainless Steel
Operational Temperature <= 140 F (60 C)
Options
Exterior painting or coating available
DIN or ASME/ANSI drilling available
Tapped drain and instrumentation ports available
