In-line Horizontal – ATEX Certified
Model: 7698
Description

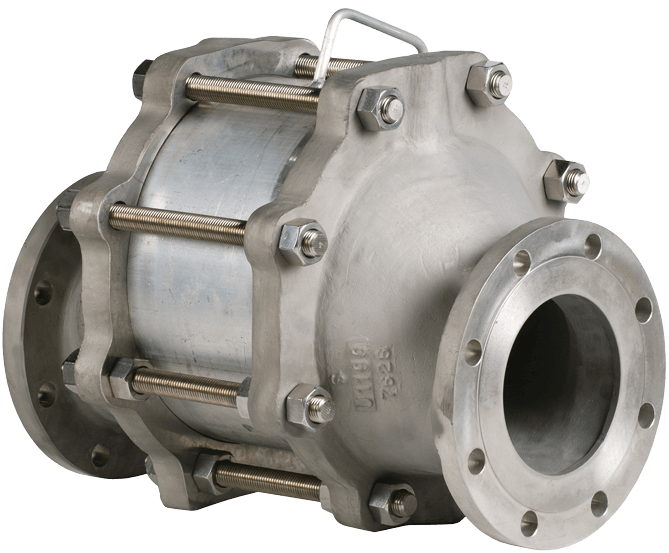

The Groth Model 7698 is an In-Line Horizontal Deflagration Flame Arrester designed to inhibit flame propagation in gas piping systems and to protect low pressure tanks containing flammable liquids. Arresters protect low flash point liquids from external sources of ignition. This provides increased fire protection and safety.
Features
Horizontal installation
Eccentric design minimizes liquid accumulation
Flame arrester element geometry maximizes flame quenching capability while minimizing pressure drop
Spiral-wound, crimped ribbon flame element
Modular design allows easy and cost-effective flame bank maintenance
Specifications
Size: 2″ (DN50) through 12″ (DN300)
Material: Housing standard material: carbon steel, stainless steel, aluminum • Flame element standard material: 316L stainless steel (Other materials available upon request)
Certification: Certified to ATEX Directive in compliance with EN ISO 16852:2011 Certificate #: IBExU12ATE X2015 X • Thermocouple is required for flame detection per the ATEX code
Thermocouple is required for flame detection per the ATEX Code
Temperature: Operational Temperature Range -4 to 140 ºF (-20 to 60 ºC)
Options
Exterior painting or coating available
DIN or ASME/ANSI drilling available
Drains and instrument ports available
Factory installed thermocouples for flame sensing
