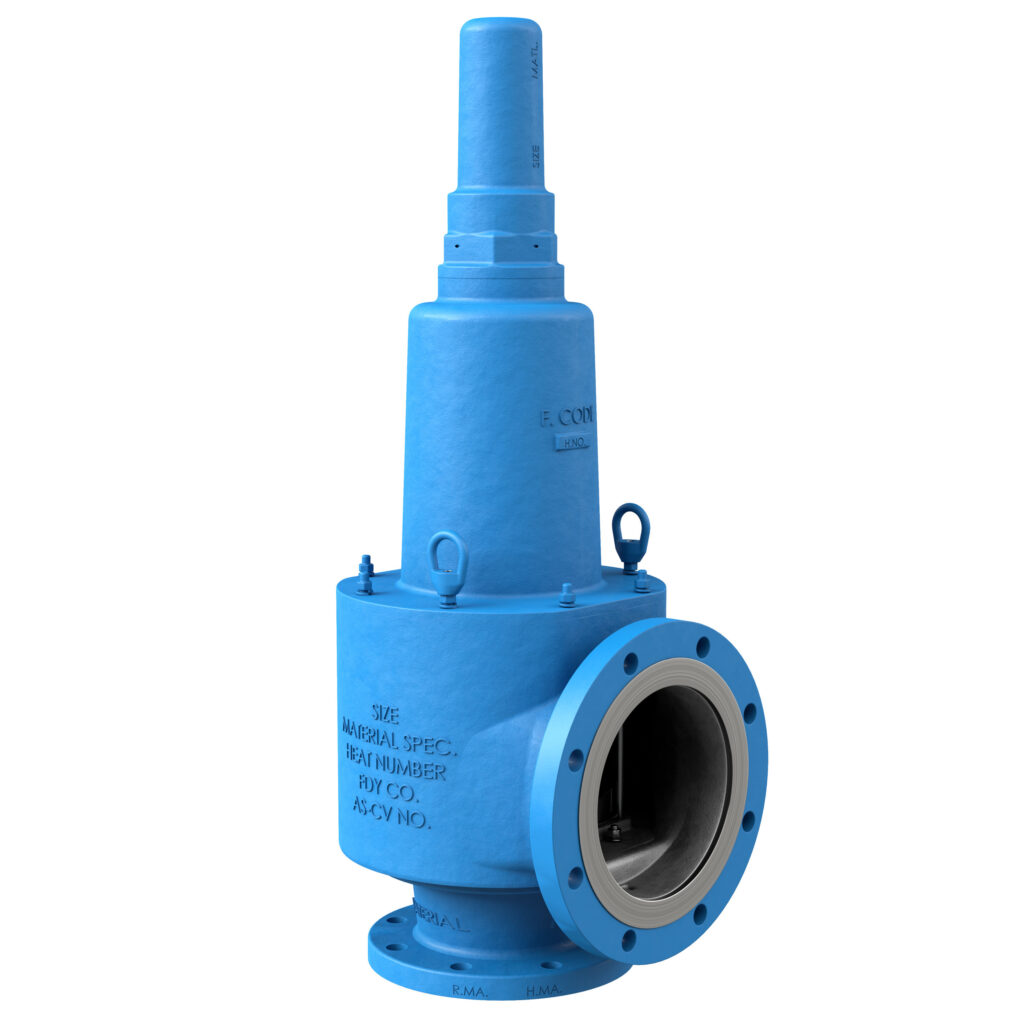

Spring Loaded Pressure Relief Valve
Model: 12F-TS0
Description
The Groth Model 12F-TS0 PVRV spring loaded design safeguards tanks
from damage created by overpressure. Costly product evaporation losses due to normal
tank “breathing” are greatly reduced. Because the 12 Series products retain toxic vapors,
atmospheric contamination is minimized which helps to provide increased fire protection
and safety.
Specifications
Technical Details
• Sizes: 2″ (DN 50) through 12″ (DN 300)
• Pressure Settings: 1 psig to 15 psig
• Material: Aluminum, Carbon Steel, Stainless Steel, special materials available upon request
Features
• Modular Construction
• Cushioned air seating
• Superior performing fluoropolymer diaphragms
• Self draining housing body and drip rings
• Peripheral Guiding and center stabilizing system for alignment
• PED and ATEX Certified
Options
Options
• Buna-N, FKM
• Steam Jacket Valve
Technical Documents for Download (PDF)
Models 12E-TSW, 12F-TSW, 12F-TS0, 23E-TS0 With Flow Curves
Models 12E-TSW, 12F-TSW, 12F-TS0, 23E-TS0 Data Sheet
General Arrangement Drawing 12F-TS0
IOM for Model 12F-TS0
