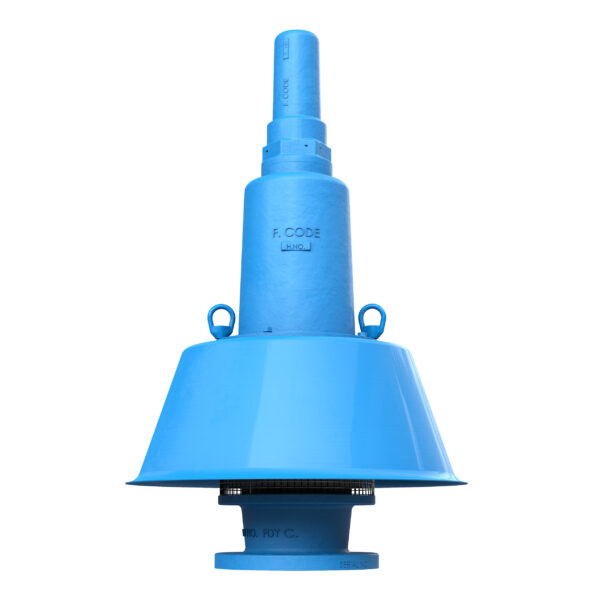

Spring Loaded Pressure Relief Valve – Vent to Atmosphere
Model: 23E-TS0
Description
The Groth Model 23E-TS0 PVRV spring loaded design safeguards tanks from damage
created by overpressure. Costly product evaporation losses due to normal tank “breathing”
are greatly reduced. Because the 12 Series products retain toxic vapors, atmospheric
contamination is minimized which helps to provide increased fire protection and safety.
Specifications
Technical Details
• Sizes: 2″ (DN 50) through 12″ (DN 300)
• Pressure Settings: 1 psig to 15 psig
• Material: Aluminum, Carbon Steel, Stainless Steel, special materials available upon request
Features
• Modular Construction
• Cushioned air seating
• Superior performing fluoropolymer diaphragms
• Self draining housing body and drip rings
• Peripheral Guiding and center stabilizing system for alignment
• PED and ATEX Certified
Options
Options
• Buna-N, FKM
• Steam Jacket Valve
Technical Documents for Download (PDF)
Models 12E-TSW, 12F-TSW, 12F-TS0, 23E-TS0 With Flow Curves
Models 12E-TSW, 12F-TSW, 12F-TS0, 23E-TS0 Data Sheet
IOM for Model 23E-TS0
General Arrangement Drawing 23E-TS0
